WM542512-Dual mode pan & tilt camera with 5”, 4 channel touchscreen baby monitor

Classification by category：

Baby & Elder Care

Enquiry Hotline：

+86-755-27308306

Dual mode pan & tilt camera with 5”, 4 channel touchscreen baby monitor Features:
2.4 GHz FHSS + WiFi dual mode technology
System expandable up to 4 cameras, single, split display or quad display
Multiple (6) language selection
720p Camera with night vision and sound trigger
Lullaby and temperature display
2 way audio, monitor or cell phone can talk back to camera
5’’touch screen monitor
Remote pan & tilt, digital zoom
Free iOS & Android App.

Related Products

Online inquiry

Introduction in Detail

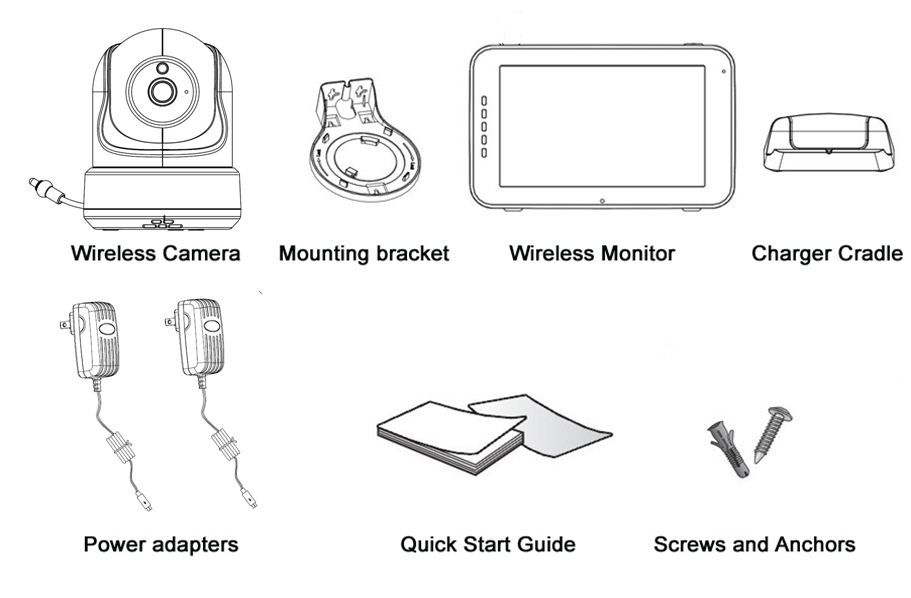

　　What's Included

　　Product Overview

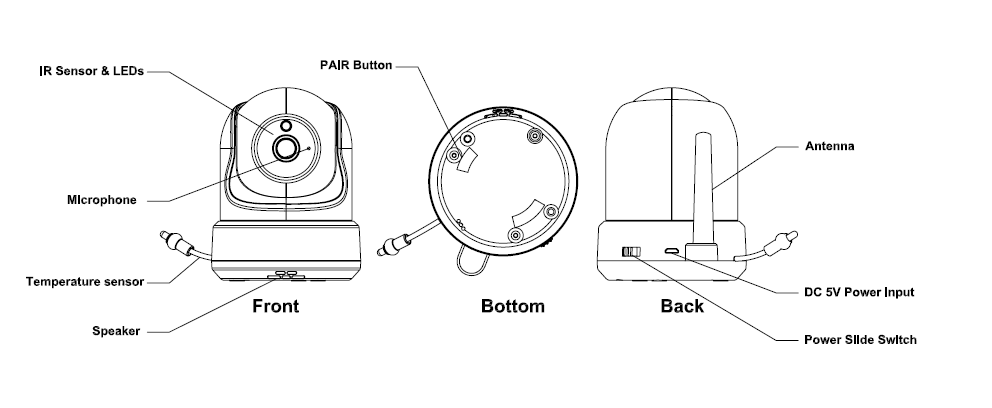

　　Wireless Camera

　　1. IR Sensor & LEDs: Infrared LEDs provide viewing in NO/LOW Light conditions.

　　2. Microphone: Detects & transmits the sounds from camera to monitor.

　　3. Temperature Sensor: The measured ambient temperature is displayed on the monitor.

　　4. Speaker: Enables the ability to talk from monitor/phone to camera and play lullabies.

　　5. Antenna: Sends & receives signals to or from the monitor.

　　6. DC 5V Power Input: Input for the power adapter, 5V 1A.

　　7. Power Slide Switch: Slide to turn on/off the camera.

　　8. Reset Button: Press this button to reset the camera or change camera mode.

　　9. Pair Button: Establishes a new connection between the camera and monitor during the pairing process.

　　Wireless Monitor

　　1. Antenna: Sends & receives signals to or from the Camera.

　　2. Sound Bar: Indicates the level of sound detected by the Camera.

　　3. DC 5V Power Input: Input for the Power Adapter 5V 1A.

　　4. Screen: 5” TFT LCD screen.

　　5. Microphone: Detects & transmits the sounds from Monitor to Camera.

　　6. Power On/Off: Press and hold to switch the monitor on/off.

　　7. Speaker: Produces the sound from the camera.

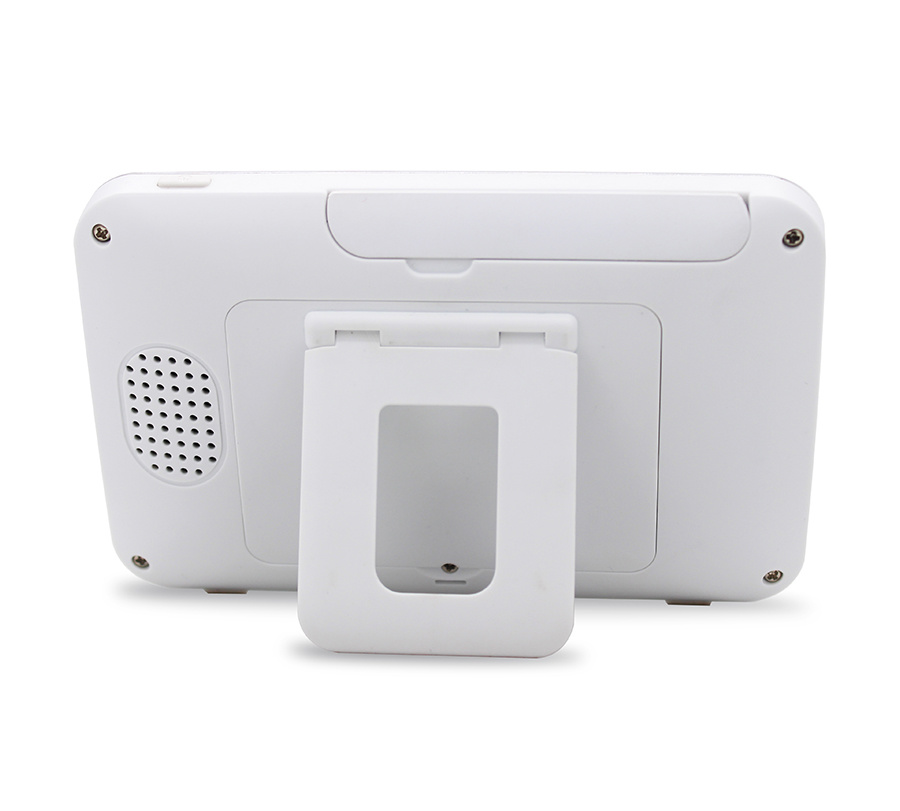

　　8. Kick Stand: Enables the table stand for the monitor.

　　9. Battery: Rechargeable lithium battery for portable use.

　　Specification

Kit
Operating Frequency Range	2.4GHz(Wi-Fi) 2.4GHz(FHSS)
TX Power	17dBm(FHSS), 15+/-1dBm(Wi-Fi)
RX Sensitivity	-88dBm(FHSS), -89dBm(Wi-Fi)
Type of Spread Spectrum Used	FHSS, Wi-Fi
Type of Modulation Used	GFSK, 502.11g/n
Data Rate	4Mbps(FHSS), WiFi(802.11b/g/n)
Communication Range	300M
Communication Range	The transmission range of the wireless signal may weaken according to your environment.

Camera
Image sensor type	1/4" Color CMOS Image sensor
Effective Pixel	1280 (H) x 1024 (V)
Power requirement	5V DC 1A
Image Resolution	High: MAX 1.7Mbps(10fps@1280*720)
Image Resolution	Low: MAX 0.7Mbps(10fps@854*480)
Lens	3.95mm F2.2
Viewing Angle (Diagonal)	55° (FOV)
IR LED / Night Vision Range	5m 940nm
Operation temperature	-10~40°C

Monitor
LCD Panel size	5" touch panel
LCD Resolution	800x480
Operating Temperature	14°F~104°F(-10~40°C)
Operating Humidity	0% ~ 85%
Power requirement	5V DC 1A

　　Note：

　　This item is in compliance with FCC test standard: Part 15C 15.247.
