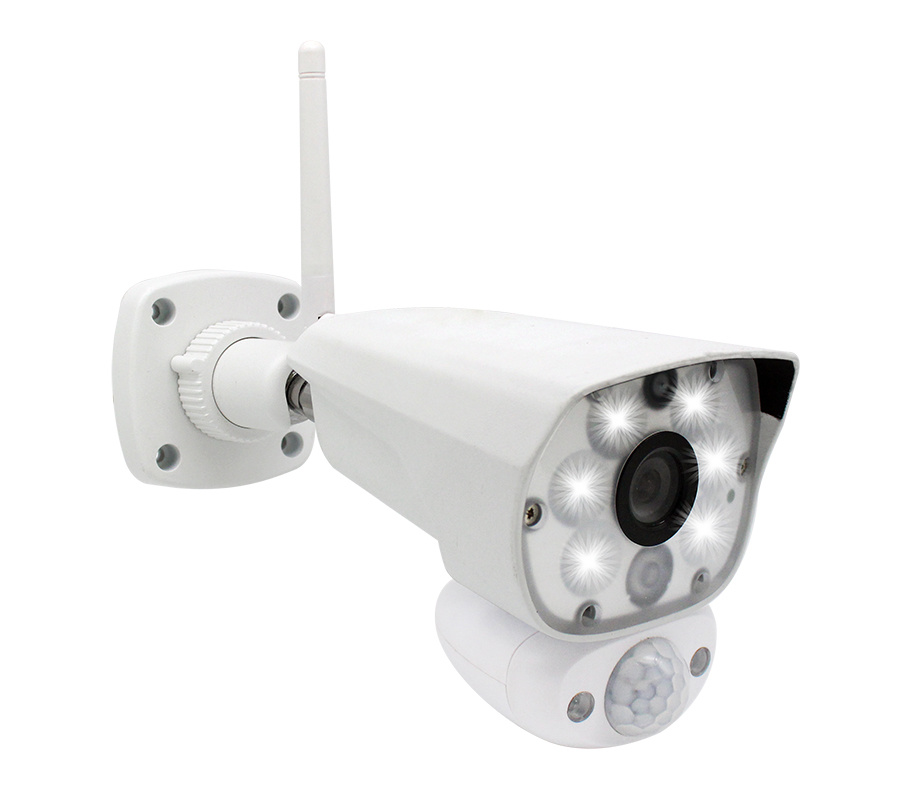

WF796: 1296p WiFi Spotlight Camera

Classification by category：

Home Security & Safety

Enquiry Hotline：

+86-755-27308306

FEATURE LIST Long Range WiFi Technology
2K (4M pixel) resolution, H.265 compression
Free iOS & Android App
Weather proof camera with 500lum white LED and night vision.
Smart motion detection uses dual sensors (heat and motion) to minimize false triggers.
Humanoid detection.
Auto and schedule recording into SD card, manual recording to smartphone/tablet.
Two-way communication, push to talk or full duplex
Support cloud recording (optional)
Support Alexa or Google Home (optional).
Siren function

Related Products

Online inquiry

Introduction in Detail

Technical Specification

Image sensor	1/3" 4M CMOS sensor
Min. Illumination	Color: 0.1 Lux
Max. resolution	2560*1440 (4.0Mega pixels)
Image frame	Main :25601440, min 1280720
Lens	f: 3.6mm, F:1.8
Visual angle	102 degree (Horizontal), 55 degree (vertical)
Focus control	NA
Audio compression	G711U encoding
Video compression	H.265
Exposure mode	Auto
Gain control	Auto
White balance	Auto
Wide dynamic range	Auto WDR control
Image setting	Flip
White LED lighting	6*1W
LED lighting control	Manual On/Off, Schedule, Trigger
LED lighting dimmer	Support
LED lighting output	500Lm
LED lighting illumination range	10m
Download recording file to cell phone	Support
PIR detection range	8m（high）、5m（medium）、3m（low）
AI	Humanoid detection
Wireless networks	IEEE 802.11b/g/n,1T1R
Frequency range	2.412GHz-2.484 GHz 5.180 GHz -5.805 GHz
Transmission rate	802.11b: 1, 2 ,5.5,11Mbps 802.11g: 6,9,12,18,24,36,48,54Mbps 802.11a: 6,9,12,18,24,36,48,54Mbps 802.11n: MCS0~7，HT20 reach up to72.2Mbps； 802.11n: MCS0~7，HT40 reach up to150 Mbps
Wireless range	250m (depend on environment) line of sight
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: 64-QAM,16-QAM, QPSK, BPSK 802.11n: 64-QAM,16-QAM, QPSK, BPSK
Network protocols	TCP/IP, UDP/IP, HTTP/HTTPS, DHCP
Alarm detection	Video motion detection, passive infrared sensor
Alarm notification	Real-time App push notification
Power supply	DC 9V 2A
LED indicator	Yes (One green LED)
Reset button	Yes
Video storage	Built-in Micro SD/SDHC/SDXC slot, up to 256 GB
User	Up to 4 users
Operation conditions	-10° ~ 50°C (14°F ~ 122°F), humidity 95% or less (No condensation)
Dimension (LxWxH)	211mm(L)×82mm(W)×93mm(H)
Protection level	IP66
Material	Aluminum alloy + ABS
Weight	550g
Certificate	FCC/CE
